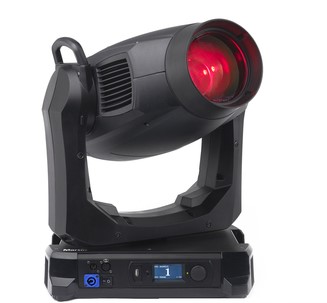

MARTIN MAC VIPER PROFILE

HIGH OUTPUT DISCHARGE-BASED PROFILE LUMINARE WITH CMY COLOR MIXING

The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set, superior light quality and a highly efficient optical system. It outperforms all market-leading profiles in the 1200-watt range and is even an alternative to 1500-watt fixtures. The Viper Profile is not only brighter, it is also a faster and more compact solution. With its 1000-watt HID source, the Viper consumes less power, making it over 50% more efficient than its 1200-watt rivals.

26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature

1:4 zoom – Fast zoom with auto-linked focus

Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look

26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature

1:4 zoom – Fast zoom with auto-linked focus

Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look

2 x 5-slot rotating gobo wheels - All glass gobos with optimal focal separation for superior morphing effects

FX wheel – Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect

CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues

8-slot color wheel – Static colors and correction filters for added color choice and bump effects

Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette

Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades

Iris – Fast and tight iris with adjustable dynamic effects

Strobe – Diverse strobe effects using mechanical or electronic control or in combination

Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option

4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

PHYSICAL

Length: 566 mm (22.3 in.) head

Width:

472 mm (18.6 in.)

335 mm (13.2 in.) base

Height:

731 mm (28.8 in.) head straight up

748 mm (29.5 in.) maximum

Weight: 37.2 kg (82.0 lbs.)

OPTICS

Zoom range: 10-44° (1:4)

Color temperature: 6000 K

Output: 26,000 lumens

ELECTRICAL

AC power: 120-240 V AC nominal, 50/60 Hz

Power supply unit: Auto-ranging electronic switch mode

Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A

Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V

Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *

Power Consumption

Typical: 1225 W *
