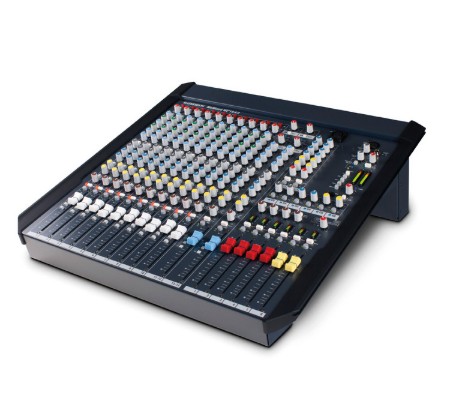

POADesigned as a uniquely versatile live sound mixer, WZ4 14:4:2 is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once.
WZ4 14:4:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.
This 4th generation MixWizard console now has the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.
If you’re looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.
19? Rack mountable
10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
100mm faders
Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
6 Aux sends – switchable pre/post fade
4 Audio groups
2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
4 band EQ with 2 swept mids
6×2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
Oscillator and Pink Noise generator for line-up and speaker testing
Tri-colour, 12 segment bargraph metering
+48V Phantom Power
Signal and Peak LEDs
Talkback Mic XLR with trim
Lamp socket
SB multitrack recording option
