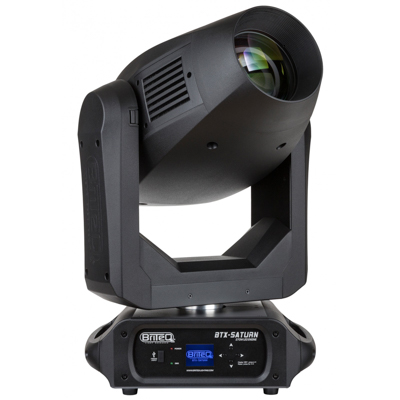

270W LED-moving head with 8-45° zoom, CMY-color mixing, CTO, CTB, UV, Iris, Frost, gobo morphing,
High efficiency moving head projector based on a powerful 270W LED engine!
Wide range electronic zoom, from 8° to 45° + motorized focus.
Silence mode for theater applications.
Fast 540° pan and 270° tilt movements.
16bit resolution pan/tilt resolution with position correction and pan/tilt speed channel.
CMY color mixing to create lots of saturated and pastel colors.
9 extra fixed colors including 2 CTO, one CTB and UV.
7 replaceable rotating gobos with fine indexing.
9 fixed static gobos for gobo morphing.
Rotating 3 facets prism.
Iris module for dynamic effect.
Variable frost filter for perfect wash effect.
Aperture diaphragm for excellent logo projection.
Opening/closing pulse, ramp and random effects on zoom, iris and frost channels.
Four dimmer curves: linear, square, inverse square, S-curve, fast and slow dimming mode.
Accurate strobe with built in random, pulse and burst effects.
3 focus compensate distances to always keep the focus according to the zoom opening.
Uses 25 or 27 DMX channels + RDM-functionality for easy remote setup.
Easy USB firmware update to keep the moving head up-to-date at all times.
The matrix LCD-display assures easy navigation in the different setup menus
3 & 5pin DMX in/outputs + Neutrik PowerCON TRUE1 in/outputs for easy daisy chaining.
Equipped with omega brackets for fast installation.
