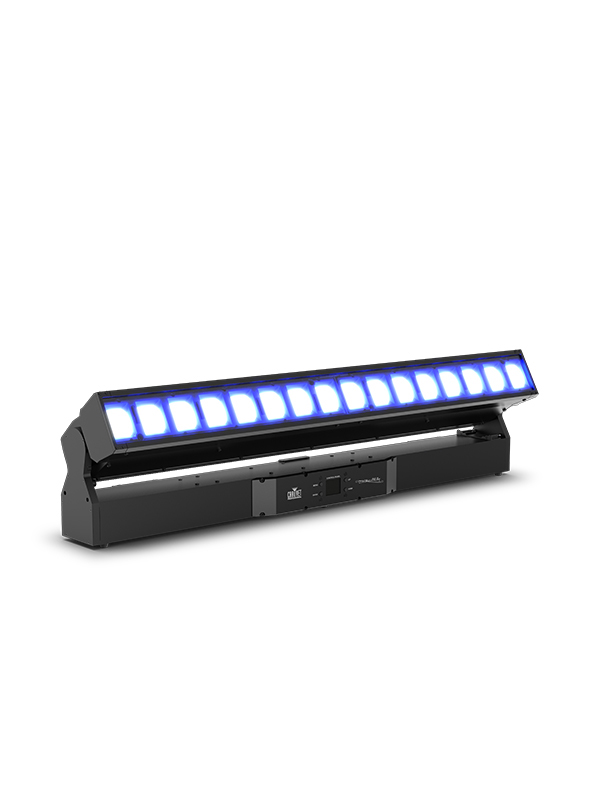

COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless!
Light Source: 16 LEDs (quad-color RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
Color Temperature (calibrated white): 6122 KCRI: 61.6Beam Angle: 5.8° to 30.4°
Beam Angle single cell: 4° to 29.9Field Angle: 8.9° to 42.2°Field Angle single cell: 5.4° to 42.3°
Cutoff Angle: 10° to 47.9°
Cutoff Angle single cell: 6.1° to 45.5°
Zoom Range: 5.8° to 47.9°
Zoom Range single cell: 4° to 45.5°Lumens (43.3°): 8,959
Illuminance (5.7°): 27,415 lux @ 5 m
Illuminance (43.3°): 1,294 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
