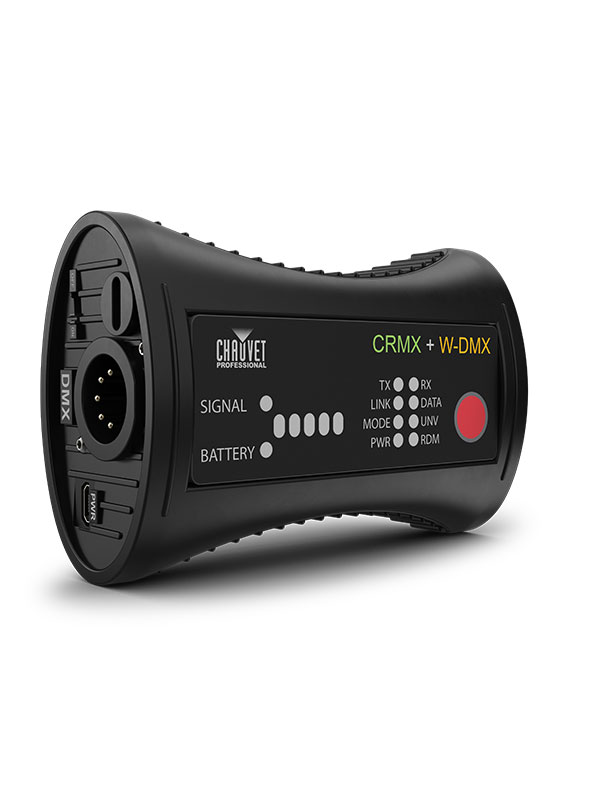

Wireless Solutions Micro T-1 Transceiver works with W-DMX and CRMX enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.
Power Connection: 5V micro USB connector (micro B) to wall wart adapter.
Data Connectors: 5-pin XLR
Control Protocol: W-DMX, CRMX, RDM.
Frequency (operating): # 2.4 GHz
Universes per device: 1
Number of DMX channels: 512DMX Latency: <5 ms
Max universe in coexistence: 16
Error correction: yes
DMX Fidelity: yes
Adaptive Frequency Hopping: Yes
W-DMX G3, G4, G4S, and G5 compatibility: Yes
Standard range: up to 650 ft (200 m)
Internal antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation method: GFSK
