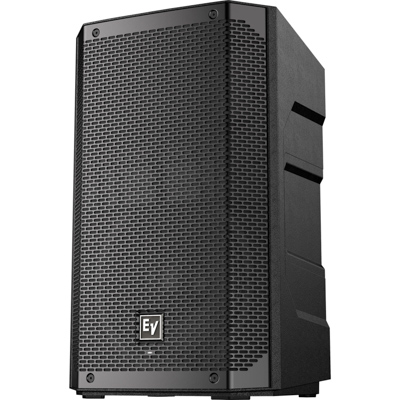

10" 2-way powered speaker, EU cord
Frequency response (-3 dB) 59 Hz -18 kHz1
Frequency range (-10 dB) 53 Hz - 20 kHz1
Maximum SPL 130 dB2
Coverage (H x V) 90° x 60°
Power rating 1200 W
LF transducer EVS-10M 254 mm (10 in)
HF transducer DH-1C 1-inch titanium compression driver
Crossover frequency 1800 Hz
Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure Polypropylene
Grille 18 AWG steel with powdercoat
Suspension (3) M10 suspension points
Color Black
Dimensions (H x W x D) 531 mm x 330 mm x 319 mm
(21.0 in x 13.0 in x 12.6 in)
Net weight 13.5 kg (29.9 lb)
Shipping weight 15.6 kg (34.4 lb)
Power consumption 100 - 240 V~, 50 - 60 Hz, 1.8A3
Weight Net 13.5kg (29.76 lbs)
