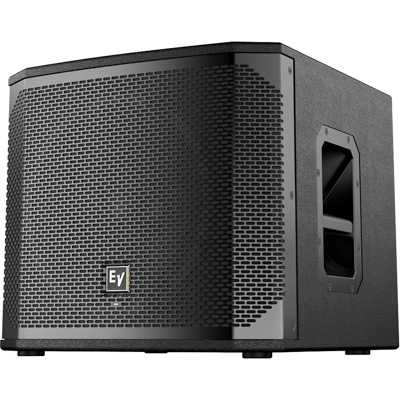

12" powered sub speaker, EU cord
Frequency response (-3 dB): 49 Hz – 135 Hz1
Frequency range (-10 dB): 41 Hz – 165 Hz1
Maximum SPL: 129 dB2
Power rating: 1200 W
LF transducer: EVS-12L 300 mm (12 in)
Low-Pass frequency: Adjustable: 80 Hz, 100 Hz, 120
Hz, 150 Hz
Connectors: (2) XLR/TRS combo jacks and
(2) XLR link outputs
Enclosure: 15 mm plywood with EVCoat
Grille: 18 AWG steel with powdercoat
Color: Black
Dimensions (H x W x D): 397 mm x 445 mm x 457 mm
(16.7 in x 17.6 in x 18.0 in)
Net weight: 19.1 kg (42.2 lb)
Shipping weight: 22.3 kg (49.2 lb)
Power consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
