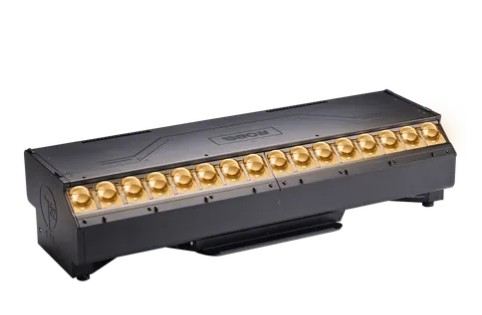

ROBE - T32 Cyc

ROBE - T32 Cyc

Are your productions being spoilt by poor cyclorama lighting? Are they not bright enough? Don‘t reach high enough? Are they poor-performing adaptations of other luminaires? It‘s time to change your cyclorama lighting from an eyesore into an eye stunner!

Designed in collaboration with the world‘s leading lighting designers, Opera Houses and Theatres, the T32 Cyc features all the performance, tools, subtlety, and control to make your designs more exciting and visually stimulating than ever before.

Attaining greater reach, smoother coverage and visual impact than ever before from LED luminaires of this type, the low-laying, easily inter-connectable T32 Cyc contains powerful RGBBAL multi-chip LEDs to generate not only high light levels but also faithfully reproduce those full-spectrum colours and tints favoured by designers across the world.

The industry-leading Opti-6 1:6 height-to-distance ratio optical design, with a classic asymmetric beam, provides greater, smoother reach and coverage, even from close proximity to the cyclorama, leaving more stage space for performers.

From either the top or base of the cyclorama the unique, patented motorised VertiSpot feature provides vertical crossover point control, superior blending and vertical output variance. In addition, the T32 Cyc has four separately controllable zones for increased variations and effects. These motorised tools allow split-second changes between scenes, giving designers far more scope than time-consuming, conventional, manually adjusted fixtures.

T-Series colour consistency and seamless integration are assured with a virtually controlled CCT range of 2.700K to 8.000K, calibrated whites, DataSwatch onboard colour library and tungsten emulation. Colours are perfectly rendered with exceptional ratings of CR:96 and TLCI:97. RGB or CMY colour mixing control offers faster programming. Vital for theatrical performance, the benchmark L3 Low Light Linearity dimming software generates imperceptible fades to black for the most demanding practitioners.

To lock the motorised VertiSpot feature in position, ROBE have BARS. Robes revolutionary patented Brake Attribute Retention System. Activated and released from your console, BARS brakes individual attribute motors, holding them firmly, locked in the exact position you set them. Simple and effective, the VertiSpot remains motionless fixed in place, through unlimited power cycles.

Pre-use movement of a fixture can be distracting. The MAPS (Patent pending) Motionless Absolute Positioning System provides stationary reset without such motion, as sensors calculate the absolute positions. This allows discreet resetting and power cycling of fixtures during a performance.

Packed with innovation, the T32 Cyc contains a suite of fan-level controls that guarantees stealth-like performance in the most demanding noisesensitive environments. AirLOC (Less Optical Cleaning) technology keeps the optical elements in pristine condition for far longer, and the CPulse flicker-free management system caters to the most advanced camera systems, letting broadcast users use this fixture with confidence. Now is the time to modernise your cyclorama lighting and give it the attention it deserves!

T32 Cyc - The art of cyclorama lighting

Light source - 16x 40W MSL RGBBAL LED multichips

Light output - up to 17.565 lm, Cpulse special flicker free management for HD and UHD cameras, ready for 8K and 16K

Field Angle - Asymmetrical field angle 85° x 45°, Opti-6 - A 6:1 height-to-distance ratio

Effects - VertiSpot - Unique, motorised vertical crossover point control for superior blending and vertical output variance (patented)
