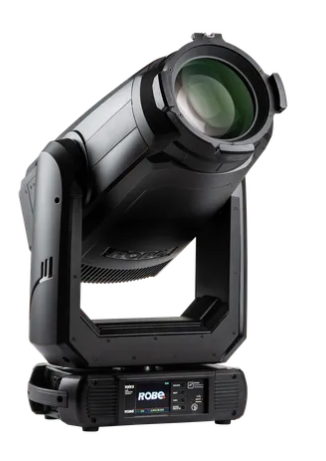

ROBE - TX1 PosiProfile

ROBE - TX1 PosiProfile

Bridging the divide between manual generic and fully automated fixtures, the TX1 PosiProfile combines both worlds into one revolutionary luminaire. Designed to operate as a fully-fledged moving head profile or as a static but repositionable profile, the unique TX1 PosiProfile allows positioning and operation within extremely confined spaces where crew access is problematic or movement options are severely limited or not required. Usually, fixtures require pre-use pan and tilt movement to calibrate to ensure accurate control when power cycling. Not so with the TX1!

Via our new MAPS (Motionless Absolute Positioning System) patented technology, the luminaire remains motionless while calibrating, unlike all other fixtures that must at least move to their home position. Using The ROBE patented BARS (Brake Attribute Retention System) operated directly from your console, TX1 remains static due to its ability to lock motorised attributes, such as pan and tilt, zoom and focus, in place. The fixture remains there until they are released. Able to restrict movement before even installation via either the onboard QVGA display or from your console, you are protected against collision and accidental damage when TX1 is in extremely tight spaces.

Fully functional, the TX1 maintains the full movement capabilities of a standard moving head profile, allowing it to operate as such. With a patented MSL-TE 500W Multi-Spectral LED engine generating over 13.500-lumen output, you have all the advantages of data harvesting, cost-effective engine change and longevity that TRANSFERABLE ENGINE technology delivers.

Light quality is assured. Belonging to the T Series, you have the same colour control platform as other fixtures in the range to produce identical colour mixing. Perfect colour rendition is assured with an adjustable CRI of 80 to 95+ and a variable CCT of 2.700K 8.000K. ROBE's DataSwatch onboard colour library contains 237 of your favourite colours and tones, including factory-calibrated whites using the RCC (Robe Colour Calibration) system for accurate reproduction and on-call self-recalibration of the LED engine. No external tools are required.

The 9:1 ratio 5.5°-50° zoom range with superb optics and industry-leading beam quality and homogenisation guarantees perfect projection and flat beams. The patented Plano4 four individual plane shutter module, with 120° module rotation, produces precise shutter cuts without any distorting pillowing effect, with iris included as standard. Two MagFrost quick change frosts are included. A 1° for softening and a 5° for washes. Others are available on request.

TX1‘s modular approach ensures cost-effectiveness when used as a repositionable profile. If effects are required, an optional module is available with a fully indexable rotating gobo wheel with 7 gobos, a static wheel with 9 gobos, and an animation wheel.

This luminaire, as you would expect, comes packed with additional Robe innovations. Cpulse flicker-free management system for HD and UHD cameras; L3 Low Light Linearity dimming software for imperceptible fades to black; AirLOC (Less Optical Cleaning) technology keeping the optical elements in pristine condition for far longer.

TX1 PosiProfile Bridging the divide between manual and automated luminaires.

Light source - TE 500W Multi-Spectral LED engine

Light output - 13.600 lm, CRI 95+, + - Green Correction Function, Cpulse special flicker free management for HD and UHD cameras, ready for 8K and 16K

Zoom range - 5.5°- 50°

Effects - Framing Shutters, Iris, Frost, Optional drop-in module with Static gobo wheel, Rotating gobo wheel and Animation Wheel
