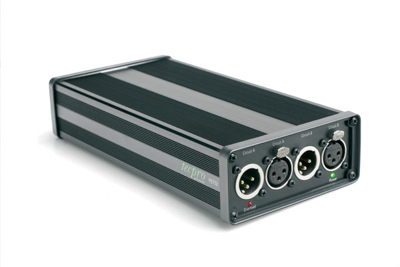

Free-standing, dual circuit power booster
The Tecpro Series 2 PB752 Power Booster provides a simple method of supplementing the 24V DC system power within existing Intercom systems of any size when there is insufficient drive current available. This may be due to power loss in long cable runs or because too many outstations and loudspeaker stations are connected to the system. To avoid altering the system impedance set by the main power supply, the PB752 does not terminate the line and no additional isolating components are required. Maximum available current is 2A and is shared between two outputs to facilitate connection to larger two circuit intercom systems. When connected to a single circuit only, the full 2A is available for that circuit. The Power Booster is compatible with older Tecpro designs.
Features
Free-standing, compact
Tough, extruded aluminium case
Universal power supply operates world-wide without resetting
Short circuit and overload protection with indication on each intercom circuit
Automatic reset after short circuit
3-Pin XLR system connectors compatible with standard mic cables
'Power ON' indication
Compatible with previous generation Tecpro designs
The PB752 can be linked to an intercom system at any point. If cable runs are long, the farthest point where voltage drop off is worst would typically be the best connection point.
The Power Booster is protected against short circuit and over-temperature. Protection is electronic and automatic and no resetting is necessary following removal of a fault condition. The unit can be operated world-wide without the need to change power supply settings.
